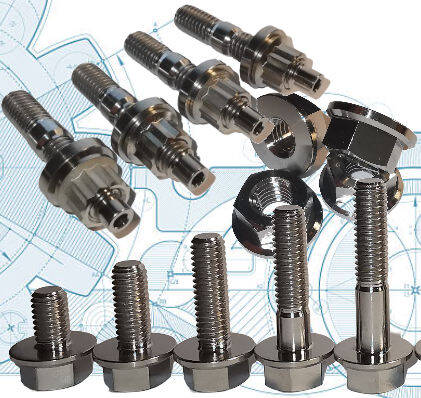

High-quality grade 5 Titanium fixings for DIY/hobby enthusiast as well as professional.
Discover the high performance of Titanium!
Explore our premium selection designed for quality and durability in all your projects.
Pro's & Con's of Titanium alloy - why you might want to use it...
| Characteristics | Grade 5 Titanium | Grade 12.9 Steel |
|---|---|---|
| Material Composition | Alloyed with 6% aluminum and 4% vanadium. | High-strength alloy steel, typically coated with a black oxide finish. Alloying elements such as chromium, molybdenum, and manganese. |
| Tensile Strength | Very high for its weight, with a minimum ultimate tensile strength (UTS) of 950 MPa (138 ksi). A high strength-to-weight ratio makes it ideal for aerospace and motorsport. | Superior ultimate tensile strength, which can be over 1200 MPa (174 ksi). Best for applications requiring maximum sheer strength. |
| Grip Strength (Clamping Force) | Develops strong clamping force but is not designed for the maximum stress capacity of the highest-grade steel. | Highest available clamping force for standard fasteners, as it is designed for heavy-duty, high-stress applications. |
| Hardness | Lower hardness compared to high-tensile steel, which can make it more susceptible to galling or thread damage during installation. | Higher hardness and wear resistance, making it more resilient during tightening. |
| Weight | Approximately 45% lighter than steel, a major advantage for applications where weight reduction is a priority. | Heavier and denser than titanium, which is a key consideration for weight-sensitive designs. |
| Corrosion Resistance | Exceptional corrosion resistance due to a protective oxide layer, especially against saltwater and many chemicals. | Susceptible to corrosion without a protective coating like zinc plating or galvanization. |
| Cost | Much more expensive than steel due to a more complex manufacturing process and the cost of raw materials. | Significantly less expensive and widely available, making it a cost-effective solution for most applications. |
| Typical Applications | Aerospace, motorsport, marine, medical implants, and other applications that require high strength-to-weight ratios or corrosion resistance. | Heavy machinery, automotive assembly, and wind turbines, where maximum strength and reliability are critical. |
